XKaapi Runtime (XKRT) - A parallel runtime system for macro-dataflow on multi-devices architectures.

XKRT is a macro-dataflow and tasking runtime system for automating memory management alongside parallel execution. It provides portable abstraction for C, C++, Julia and partial support for BLAS and OpenMP.

Please open any issue at https://github.com/rpereira-dev/xkrt

Related Projects

This repository hosts the XKRT runtime system.

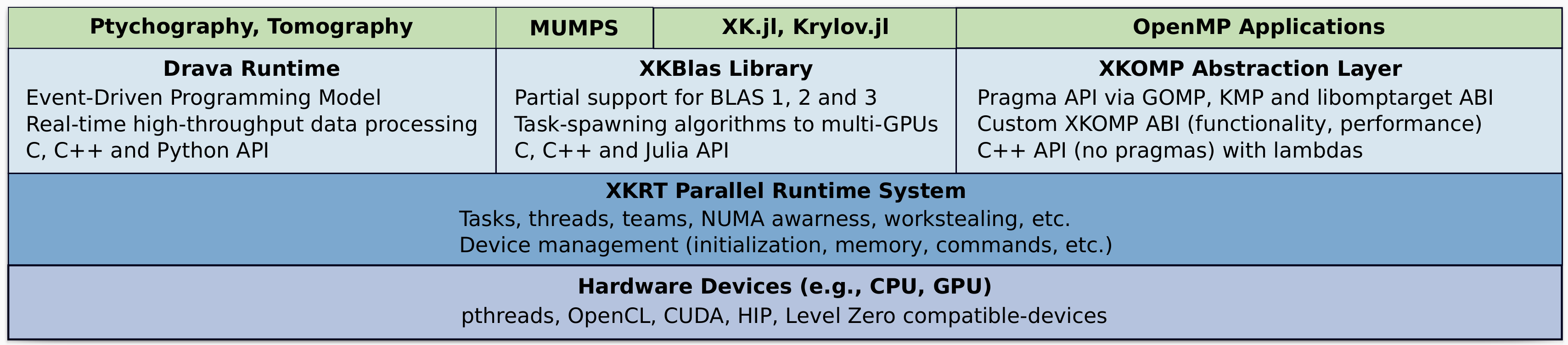

Other repository hosts specialization layers built on top of the runtime:

• Drava is an event-driven programming model and runtime system, for real-time high-throughput data processing.
• LLVM-ANLSYS is a fork of LLVM with extensions for OpenMP, targeting XKOMP
• OpenCG is a library for optimizing graph of commands targeting multi-devices systems.
• XK.jl Julia bindings of XKRT and XKBlas
• XKBlas is a multi-gpu BLAS implementation that allows the tiling and composition of kernels, with asynchronous overlap of computation/transfers.
• XKOMP is an experimental OpenMP runtime built on top of XKRT.

Installation

Requirements

• A C/C++ compiler with support for C++20 (the only compiler tested is LLVM >=20.x)
• hwloc - https://github.com/open-mpi/hwloc
• OpenCG release/v0.1 - https://github.com/JLESC-Tasking-Group/opencg

Optional

• Cuda, HIP, Level Zero, SYCL, OpenCL
• CUBLAS, HIPBLAS, ONEAPI::MKL
• NVML, RSMI, Level Zero Sysman
• AML - https://github.com/anlsys/aml
• Cairo - https://github.com/msteinert/cairo - for debugging purposes, to visualize memory trees
• Proteus - https://github.com/Olympus-HPC/proteus - for JIT compiling tasks

Build (One line assistant)

# using wget
bash <(wget -qO- https://gitlab.inria.fr/xkaapi/dev-v2/-/raw/release/latest/scripts/install.sh)

# using curl
bash <(curl -fsSL https://gitlab.inria.fr/xkaapi/dev-v2/-/raw/release/latest/scripts/install.sh)

Build example (Manual)

See the CMakeLists.txt file for all available options.

# with support for only the host driver and debug modes, typically for developing on local machines with no GPUs
CC=clang CXX=clang++ cmake -DUSE_STATS=on -DCMAKE_BUILD_TYPE=Debug ..

# with support for Cuda
CC=clang CXX=clang++ CMAKE_PREFIX_PATH=$CUDA_PATH:$CMAKE_PREFIX_PATH cmake -DUSE_CUDA=on ..

# with support for Cuda and all optimization
CC=clang CXX=clang++ CMAKE_PREFIX_PATH=$CUDA_PATH:$CMAKE_PREFIX_PATH cmake -DUSE_CUDA=on -DUSE_SHUT_UP=on -DENABLE_HEAVY_DEBUG=off -DCMAKE_BUILD_TYPE=Release ..

Available environment variable

• XKRT_HELP=1 - displays available environment variables.

Directions for improvements / known issues

• There is currently 1x coherence controller per couple (LD, sizeof(TYPE)) while there should be for LD * sizeof(TYPE) - which can be useful for in-place mixed-precision conversions
• Add a memory coherency controller for ‘point’ accesses, to retrieve original xkblas/kaapi behavior - that is a decentralized and tile-base coherence protocol
• Stuff from xkrt-init could be moved for lazier initializations
• Add support for blas compact symetric matrices
• Add support for GDRCopy in the Cuda Driver (https://developer.nvidia.com/gdrcopy) - for low overhead transfer using CPUs instead of GPUs DMAs
• Add support for commutative write, maybe with a priority-heap favoring accesses with different heuristics (the most successors, the most volume of data as successors, etc…)
• Add support for IA/ML devices
